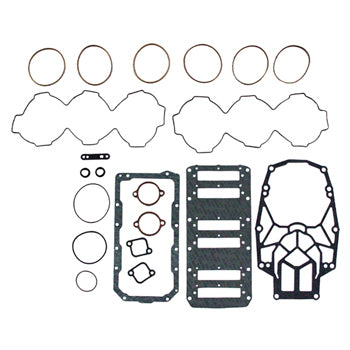

Gasket Kit, Powerhead
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Compatible Applications
| Brand | Application | Engine Type | Application Notes |
|---|---|---|---|
| Mercury | 200–300hp DFI XS / Pro XS | 2-Stroke Outboard | Serial range OT651945 & Up, 2003 & Up |
What is Included
| Qty | Included Part | Part Number |
|---|---|---|
| 1 | Gasket, Fuel Pump | 1487 |
| 2 | O-Ring, Temp Sender | 2562 |
| 1 | Gasket, Powerhead Base | 27-833 |
| 1 | Gasket, Reed Hi Perf | 2707AFM |
| 1 | Gasket, Air Horn Plenum | 2708 |
| 2 | Seal, Thermostat | 424 |
| 1 | O-Ring, Lower End Cap | 425 |
| 6 | O-Ring, Cylinder Bore Seal | 4391 |
| 1 | O-Ring, Throttle Body to Plenum | 5426 |
| 1 | O-Ring, Upper Cap | 7414 |
| 2 | O-Ring, Head Water Jacket | 8574 |
| 2 | Gasket, Relief Valve 2 Bolt | 8890 |
| 2 | Gasket, Thermostat | 9769 |
Check your serial number
This kit is specific to the serial range shown above. Check the serial number on your engine before ordering.
What This Kit is Used For
This Pro Marine powerhead gasket kit supplies the gaskets and seals needed to reseal the powerhead during a rebuild or major repair on Mercury 200–300hp DFI XS / Pro XS two-stroke outboards.
Key Features and Benefits
- Powerhead gasket kit for Mercury 200–300hp DFI XS / Pro XS
- 23 pieces across 13 part numbers, listed above
- Cross-references 832933A05 and 841220A03
- Aftermarket replacement
Kit Details
- Kit Part Number: 4312-4
- Manufacturer: Pro Marine (Aftermarket)
- Kit Type: Powerhead gasket kit
- Engine Type: 2-Stroke Outboard
- Cross Reference: 832933A05, 841220A03
FAQ
What does this kit fit?
This kit fits Mercury 200–300hp DFI XS / Pro XS two-stroke outboards. Confirm your model and serial number before ordering.
What part numbers does it replace?
It cross-references 832933A05 and 841220A03.
