Engine Rebuild Kit .020 Over
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Compatible Applications
| Brand | Engine | Horsepower | Application Notes |
|---|---|---|---|
| Yamaha | V6 HPDI 2.6L 2-Stroke | 150–200HP | 2000–2008 |

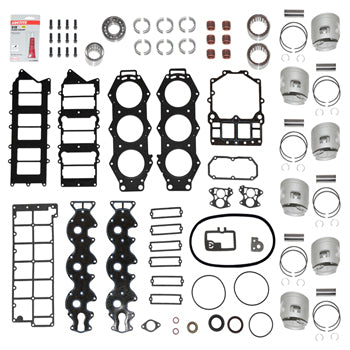

What is Included
| Qty | Included Part | Part Number |
|---|---|---|
| 3 | Pro Piston Kit, .020 Over, Port | 4520P |
| 3 | Pro Piston Kit, .020 Over, Starboard | 4520S |
| 6 | Wrist Pin Bearing, Caged, 23mm | 323 |
| 6 | Rod Bearing, Caged | 836 |
| 12 | Rod Bolt, 90° | RB4000 |
| 1 | Upper Main Bearing | 6038 |
| 2 | Center Main Bearing Kit | 7626 |
| 1 | Lower Main Ball Bearing | 208 |
| 1 | Powerhead Gasket Kit | 2850 |
This is a .020" oversize kit
The pistons are .020" larger than standard, for a finished bore of 3.564". The cylinders must be bored and honed to match the pistons before assembly. Have your machine shop measure the bores and confirm the oversize you need before ordering.
What This Kit is Used For
This Pro Marine engine rebuild kit supplies the pistons, bearings, and gaskets needed to rebuild the powerhead on 2000–2008 Yamaha 150–200HP V6 HPDI 2.6L outboards that have been bored .020" oversize.
Key Features and Benefits
- Complete powerhead rebuild kit for Yamaha V6 HPDI 2.6L, 2000–2008
- Includes six Pro .020" oversize pistons (three port, three starboard)
- Includes 23mm wrist pin bearings, rod bearings, and main bearings
- Includes new 90° rod bolts and powerhead gasket kit
- One part number covers the full rebuild
Kit Details
- Kit Part Number: 4520K6
- Manufacturer: Pro Marine (Aftermarket)
- Engine Type: 2-stroke, V6 HPDI
- Piston Size: .020" Over
- Finished Bore: 3.564"
- Not Included: Crankcase sealant and needle bearing assembly grease
FAQ
What engines does this kit fit?
This kit fits 2000–2008 Yamaha 150–200HP V6 HPDI 2.6L outboards. It does not fit the 3.3L HPDI.
Why are there port and starboard pistons?
The V6 uses side-specific pistons, so the kit includes three of each. Install each piston on its matching cylinder bank.
Do I need to bore my cylinders?
Yes. The pistons are .020" oversize, so the cylinders must be bored and honed to 3.564".
